‧LONGYI develops and fabricates the ceramic and SUS dispensing nozzle different from the common metallic product.
‧ Adhesive dispensing series ‧ Pick and place series
Material: Zirconia, SUS304
Industry: Semiconductor
Application: Flip Chip / Die Attach / Die Bonding

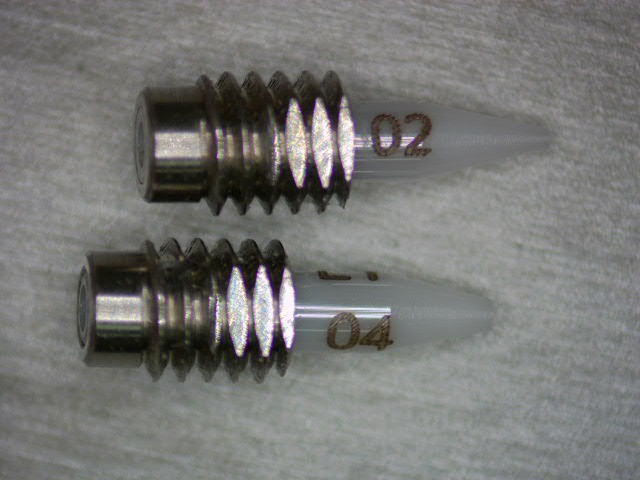

19L Ceramic Dispensing Nozzle
‧ Adhesive coating ‧ No stuck and leak or too dry
‧ No overspray, no oil mist, and no splash ‧ Can adjust nozzle's atomization pressure
Material: Zirconia, SUS304
Industry: Semiconductor
Application : Flip Chip / Die Attach / Die Bonding

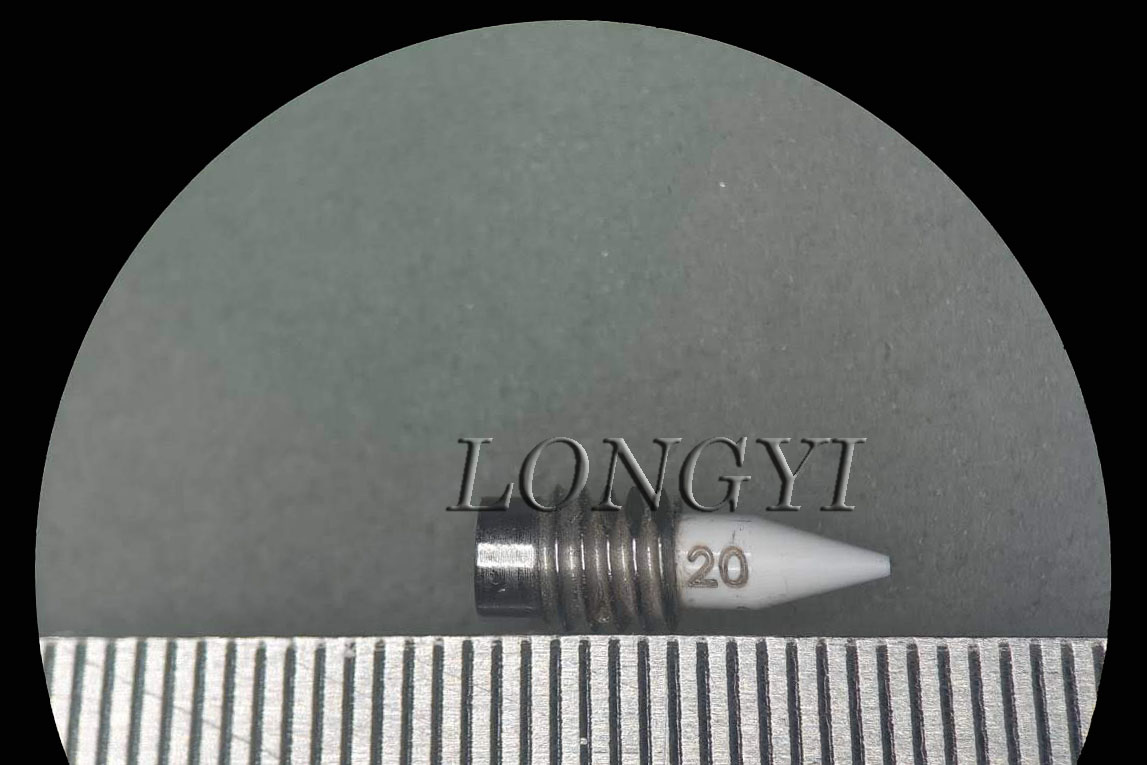

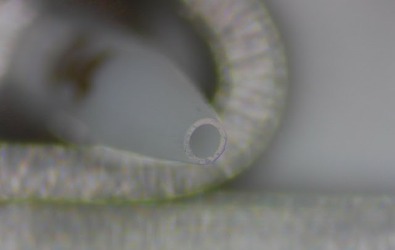

Dispensing Nozzle Small Diameter Photo

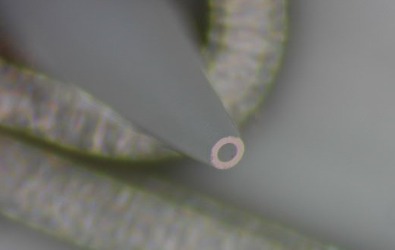

This is our ceramic dispensing nozzle’s tip diameter. You can see these two photos below, one is 0.2mm and the other is 0.3mm.
0.20mm
0.30mm

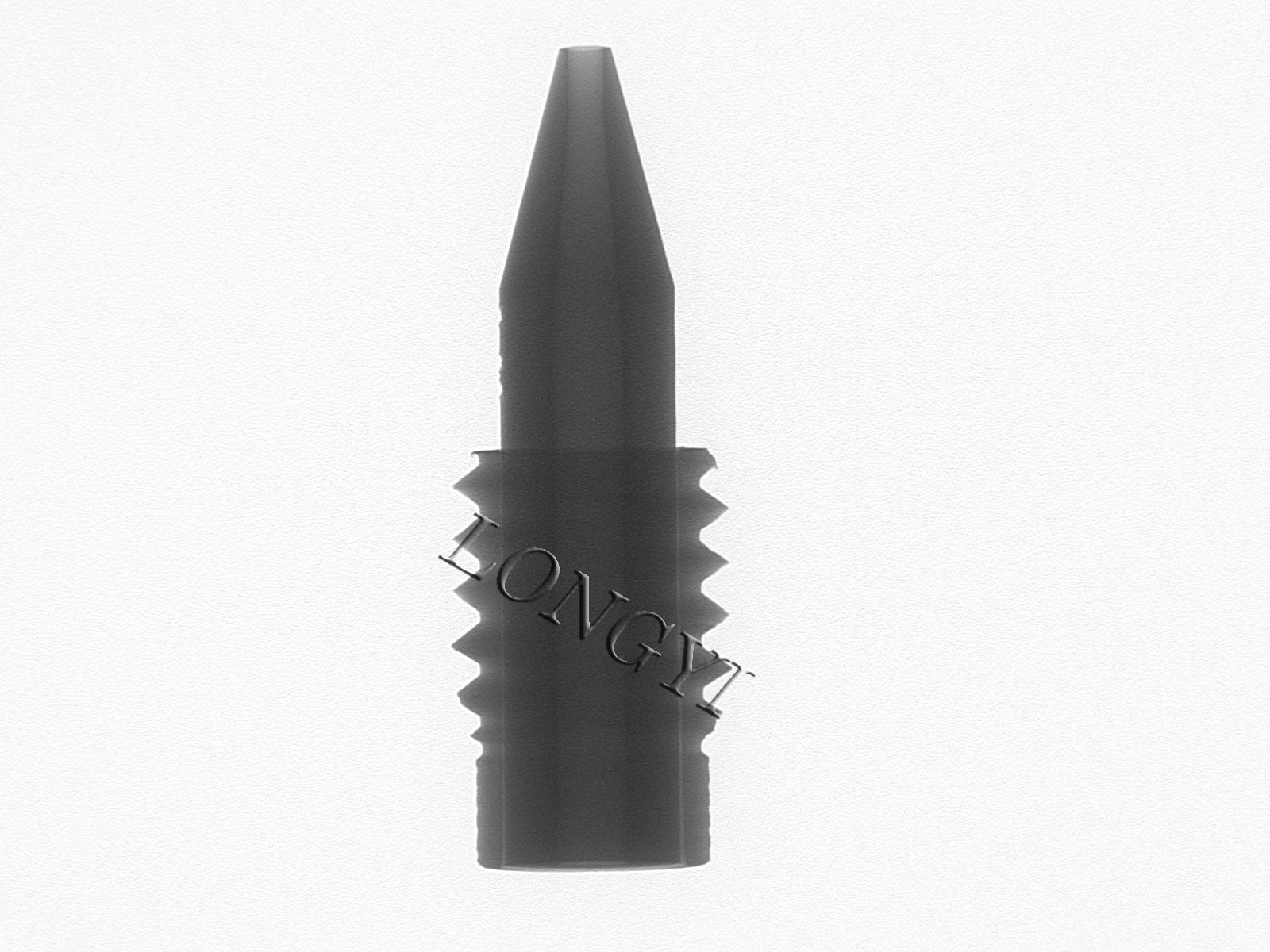

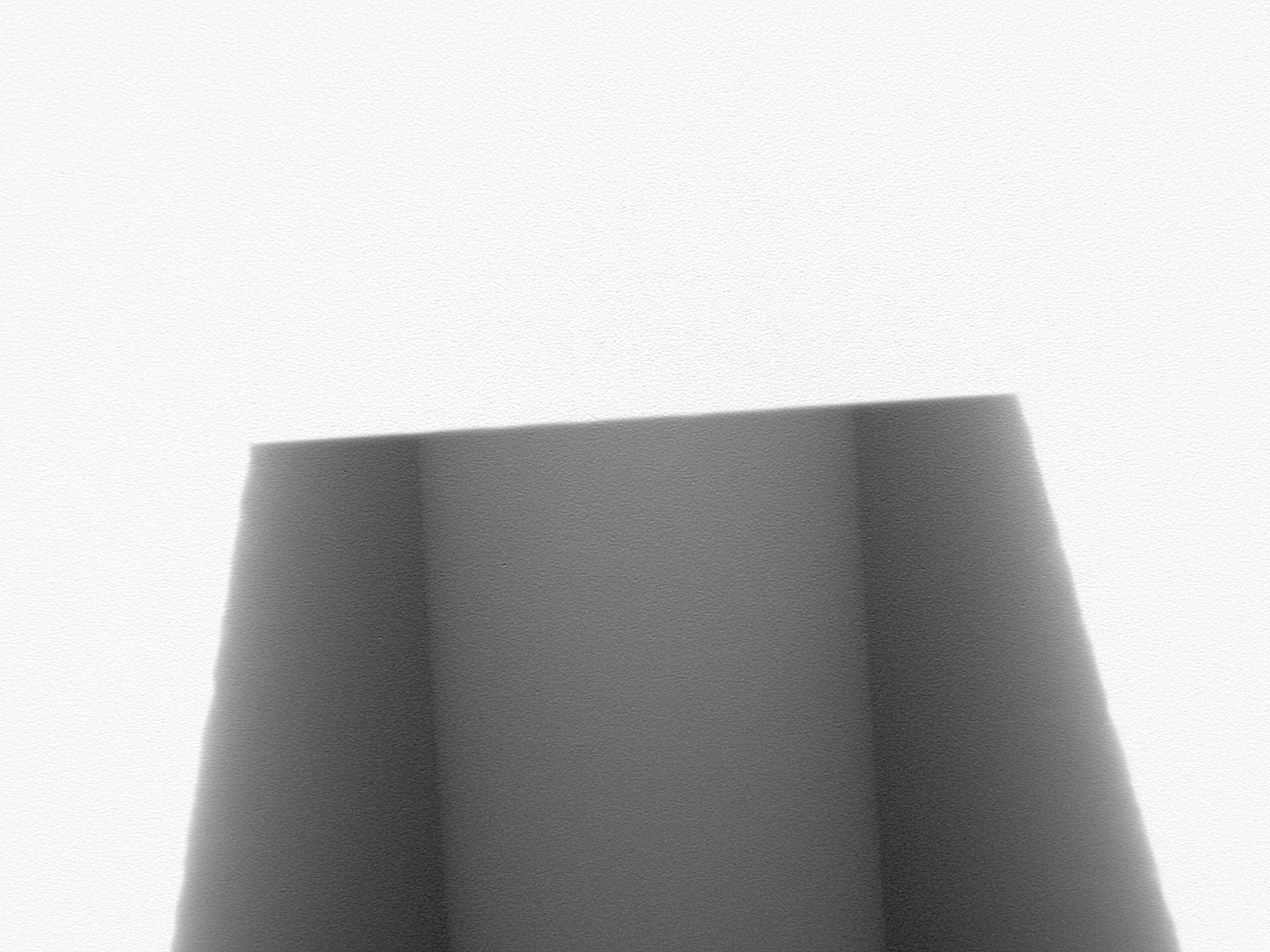

X-Ray Precision Measurement for Ceramic Dispensing Nozzle
In LONGYI, we use X-ray and precision measuring equipment to ensure the quality of glue flow. In addition, we suggest doing a reverse engineering service since it won't damage the workpiece.
The Difference between Tungsten Steel and Ceramic
Glue Contrary - Tungsten Steel Dispensing Nozzle and Ceramic Dispensing Nozzle.
As the adhesive’s coating speed is at 90%, tungsten steel dispensing showed uneven glue amount, causing defects in the product.
As the picture shows, tungsten steel dispensing needs to reduce its coating speed to 50% or lower to reach ceramic dispensers at 90% coating speed with the same glue amount and evenness. Ceramic dispensing not only increases productivity but also decreases the worry of downtime maintenance.
Ceramic Dispensing glued at 90% speed.
Tungsten Steel glued at 50% or lower speed.
Tungsten Steel glued at 90% speed.
Used Contrary
Tungsten Steel Dispensing Nozzle and Ceramic Dispensing Nozzle
.jpg)

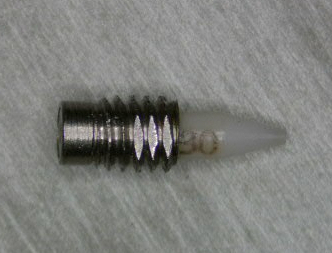

7L dispensing nozzle LONGYI made that change in appearance after
a while of usage
Other brand’s dispensing nozzle that change in appearance after several use.

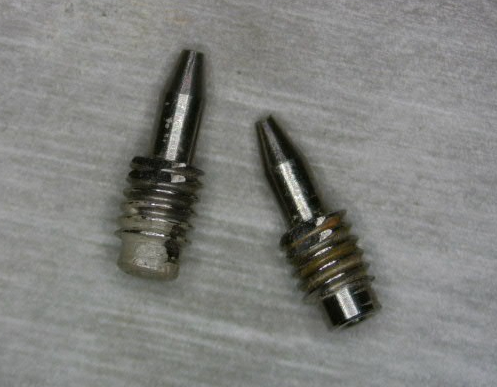

Other brand's 7L tungsten steel dispensing nozzle that change in appearance after several use.
